Human CHRDL1 PicoKine® Quick ELISA Kit
PRODUCTS SPECIFICATIONS
DESCRIPTION
Product Name
Human CHRDL1 PicoKine® Quick ELISA Kit
SKU/Catalog Number
FEK1953
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Human CHRDL1 PicoKine® Quick ELISA Kit (90 minutes, 96 Tests). Quantitate Human CHRDL1 in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 50pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months. (Ships with gel ice, can store for up to 3 days in room temperature. Refrigerate upon receipt.)
Cite This Product
Human CHRDL1 PicoKine® Quick ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # FEK1953)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: E22-C450
Capture/Detection Antibodies
The capture antibody is monoclonal antibody from mouse and the detection antibody is polyclonal antibody from goat.
Sensitivity
<50 pg/ml
Assay Range
93.6 pg/ml - 6,000 pg/ml

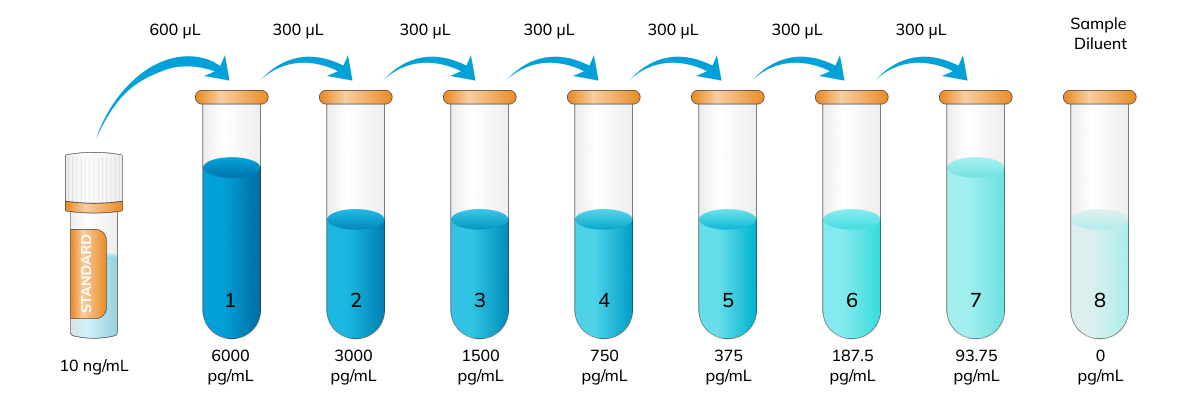

Standard Dilution Instructions
See datasheet of FEK1953 for more details
Cross Reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
FEK1953 is reactive to CHRDL1 in Human samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA).
Application Guarantee
FEK1953 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of CHRDL1
Chordin-like 1 is a protein that in humans is encoded by the CHRDL1 gene. It is mapped to Xq23. This gene encodes an antagonist of bone morphogenetic protein 4. The encoded protein may play a role in topographic retinotectal projection and in the regulation of retinal angiogenesis in response to hypoxia. Alternatively spliced transcript variants encoding different isoforms have been described.
Kit Components
| Catalog number | Description | Quantity | Volume |
|---|---|---|---|
| FEK1953-CAP | Anti-tag Pre-coated 96-well Strip Microplate | 1 | 12 strips of 8 wells |
| EK1953-ST | Human CHRDL1 Standard | 2 | 10 ng/tube |
| FEK1953-A | Human CHRDL1 Antibody A | 1 | 3ml |
| FEK1953-B | Human CHRDL1 Antibody B | 1 | 3ml |
| AR1106-1 | Sample Diluent | 1 | 15ml |
| AR1106-7 | TBS-T Wash Buffer (25x) | 1 | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 1 | 10ml |
| AR1105 | Stop Solution | 1 | 10ml |
| PLA-SEA | Adhesive Plate Sealers | 2 | Piece |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Automated plate washer (optional)
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
- Horizontal orbital microplate shaker capable of maintaining a speed of 500 rpm, amplitude 3mm.
Validation Standard Curve O.D. At 450nm
| Concentration (pg/ml) | 0 | 93.7 | 187.5 | 375 | 750 | 1500 | 3000 | 6000 |
| O.D. | 0.088 | 0.134 | 0.176 | 0.265 | 0.402 | 0.702 | 1.263 | 2.099 |
Data Example Images
Human CHRDL1 PicoKine ELISA Kit standard curve
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human CHRDL1 PicoKine® Quick ELISA Kit within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 146 | 511 | 1796 | 201 | 618 | 2851 |
| Standard deviation | 7.59 | 27.08 | 100.58 | 13.07 | 41.41 | 196.72 |
| CV (%) | 5.2% | 5.3% | 5.6% | 6.5% | 6.7% | 6.9% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of CHRDL1 in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 146 | 138 | 126 | 133 | 135 | 7.29 | 5.4% |
| Sample 2 | 511 | 424 | 442 | 453 | 457 | 32.57 | 7.1% |
| Sample 3 | 1796 | 1945 | 1901 | 2041 | 1920 | 88.03 | 4.5% |
